DA-18HA-20 Fiber Optic Distribution Box

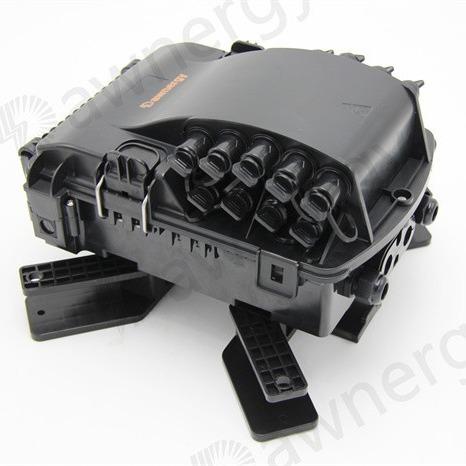

An 18 core fiber optic distribution box with Huawei type waterproof 18 adapters is a device used to terminate and distribute fiber optic cables in outdoor or harsh environments. It typically features a waterproof and weather-resistant enclosure that protects the fiber optic cables and connectors from moisture, dust, and other environmental factors.
Features
- IP 65 Protection lever
- PC+ABS, Size: 295*220*140
- Each side have 9 drop cable slots for Huawei Type water-proof adapters (Totally 18)
- One mid-span port (uncut cable) and 2 cable glands, additional cable input port on both sides, suitable for Max. OD 12mm cable
- Each 24f splicer tray has PLC slot for install mini type 1x8 or 1x16 PLC splitter (Max support 4pcs trays)
- Suitable for wall and pole mounted
- External cable storage device option
Applications
Specifications
Environmental requirement
- Working temperature:-40℃～+85℃
- Relative humidity:≤85%(+30℃)
- Atmospheric pressure:70KPa～106Kpa
Thunder-proof technical datasheet
- The insulation resistance between the grounding device and the metal parts of the box is no less than 2 MΩ/500V(DC)；IR≥2 MΩ/500V
- The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover；U≥3000V
| Material | Size A*B*C (mm) | Max Capacity | Cable Ports | Into the Largest Cable Diameter(mm) |
| Input | Output |
| PC+ABS | 295*220*140 | 4pcs 24F splice trays | 1pc mid-span (2holes) 2pcs Single cable port | 18pcs Huawei Mini SC water-proof adapter | 12 |
Product Installation
Wall-mounted installation
Pole-mounted installation
Suitable for Huawei Type Mini SC Water Proof Adapter
Huawei Type Mini SC Fiber Connector Installation
Rotate the arrow part of fiber connector counterclockwise and take out the dust cap.
The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.
Ordering Information
DA-8SX-20
Black; PC+ABS; With the adaptor panel for max. 8 pieces of Huawei Mini SC water-proof adapters, 1 mid-span port (2cable inlet holes) and 2pcs single cable ports for Max 14mm input cable; Dimensions (mm): 319*200*97; Wall mounting accessories included(pole mounted kits is option)
